LABORATORY EQUIPMENT

MICROTOMES AND SAMPLE PREPARATION

Reliable and uncomplicated – our products offer ergonomic operation combined with exceptionally precise performance.

SCROLL DOWN

FOR DISPOSABLE BLADES OR STEEL KNIVES

Razor

Razor & Steely ensure high-precision cuts of paraffin-embedded samples for medical, biological and industrial applications. The smooth turns of the handwheel ensure easy and ergonomic handling. The same applies to the safety lock integrated in the handwheel for easy access. Precise clamping of the knife holder with optimum displacement possibility. Collision protection at the fine feed dial. The thoughtful design provides storage space for various work accessories.

request now

RAZOR

FEATURES

Cut thickness 0.5 ~ 60 µm

Handwheel locks

Simple operation and exemplary comfort

Ergonomic design

request now

FEATURES

Range Cut thickness 0.5~60 μm

Setting cutting thickness
0.5 µm – 2 µm, 0.5 µm steps
2 µm – 10 µm, 1 µm steps
10 µm – 20 µm, 2 µm steps
20 µm – 60 µm, 5 µm steps

Vertical object feed 70 mm

Accessories

With object retraction 80 µm in the return

Coarse drive clockwise and counterclockwise

Handwheel lock integrated in the handwheel

Dimensions (L×W×H) 460×460×280 mm

Horizontal object feed 40 mm

Vertical object feed 70 mm

FOR DISPOSABLE BLADES OR STEEL KNIVES

Razor-E

The semi-automatic microtome is equipped with an electronic servo drive. This makes operation much easier for long-lasting cutting sequences. Cutting can be started either at the manual control panel or at a foot switch (optional). Cutting can be done in 3 variations on the hand tableau:

→Tip mode→Single stroke (alternatively with foot switch)→Continuous stroke

request now

RAZOR-E

FEATURES

Additional high-speed button enables fast cutting. Pressing the Stop key stops the object in the current position. The cutting speed can be set from 1 to 150 strokes per minute. Coarse drive left (handwheel) with slipping clutch. Fine infeed with collision protection. Optimum object guidance due to backlash-free and maintenance-free cross roller guide with positively guided roller cages. Precise clamping of the knife holder with optimum displacement possibility. Automatic object retraction.

request now

TECHNICAL SPECIFICATIONS

Range Cut thickness 0.5~60 μm

Setting cutting thickness
0.5 µm – 2 µm, 0.5 µm steps
2 µm – 10 µm, 1 µm steps
10 µm – 20 µm, 2 µm steps
20 µm – 60 µm, 5 µm steps

Vertical object feed 70 mm

Accessories

With object retraction 80 µm in the return

Coarse drive clockwise and counterclockwise

Handwheel lock integrated in the handwheel

Dimensions (L×W×H) 460×460×280 mm

Horizontal object feed 40 mm

Weight 36kg

LARGE CUT SLED

Microtome-L

The large-slide microtomes are high-performance microtomes for biomedical and industrial applications. The microtomes are fully automated and feature control panels with electronic handwheels as well as a touchscreen for quick and easy adjustments. The solid construction ensures high stability, yet the equipment can be moved effortlessly via the heavy-duty casters provided. Due to the precise blade alignment and specimen orientation, as well as a freely selectable blade and declination angle, the microtomes deliver highly precise sections for all conceivable applications. The entire design is user-friendly and extremely low-maintenance.

request now

MICROTOM-L

FEATURES

Outer dimensions frame: 990 x 550 x 950 mm

Control panel dimensions: 400 x 470 x 150 mm plus telescopic arm

Working height (without specimen mounting): 950 mm

Recommended footprint: 1,400 x 1,300 mm

Total weight: 420 kg

request now

FEATURES

Cut thickness adjustable from 1 to 1,000 µm in 1-µm increments

Cutting speed continuously adjustable from 1 to 125 mm/s

Total vertical stroke of the blade: 70 mm

Knife retraction: freely selectable from 100 to 2,000 µm

Accessories

Knife clearance angle freely adjustable from 0° to -25

Blade declination freely adjustable from 90° to 135° on both sides

Trim function for fast specimen cutting, with freely selectable trim values

Freely selectable collision protection level

Individual cutting window with freely programmable front and rear start or end points

Manual movement of the knife via touchscreen or electronic handwheel

Direct knife clamping possible without knife holder

LARGE CUT SLED

Microtome-XL

The large-slide microtomes are high-performance microtomes for biomedical and industrial applications. The microtomes are fully automated and feature control panels with electronic handwheels as well as a touchscreen for quick and easy adjustments. The solid construction ensures high stability, yet the equipment can be moved effortlessly via the heavy-duty casters provided. Due to the precise blade alignment and specimen orientation, as well as a freely selectable blade and declination angle, the microtomes deliver highly precise sections for all conceivable applications. The entire design is user-friendly and extremely low-maintenance.

request now

MIKROTOM-XL

FEATURES

Outer dimensions rack: 1175 x 650 x 950 mm

Control panel dimensions: 400 x 470 x 150 mm plus telescopic arm

Working height (without specimen mounting): 950 mm

Recommended footprint: 1,600 x 1,400 mm

Total weight: 550 kg

request now

FEATURES

Cut thickness adjustable from 1 to 1,000 µm in 1-µm increments

Cutting speed continuously adjustable from 1 to 125 mm/s

Total vertical stroke of the blade: 70 mm

Knife retraction: freely selectable from 100 to 2,000 µm

Accessories

Knife clearance angle freely adjustable from 0° to -25

Blade declination freely adjustable from 90° to 135° on both sides

Trim function for fast specimen cutting, with freely selectable trim values

Freely selectable collision protection level

Individual cutting window with freely programmable front and rear start or end points

Manual movement of the knife via touchscreen or electronic handwheel

Direct knife clamping possible without knife holder

With the end of 2020 the distribution of our product line MICROS microscopes worldwide, except Austria, was exclusively handed over to LABWAY International.
Please contact our long-term partner and give him your trust.

LABWAY, SL

Poeta Navarro Cabanes, 15, 46018 Valencia - Spain

[email protected] www.labwayinternational.com – +34 961 529 388

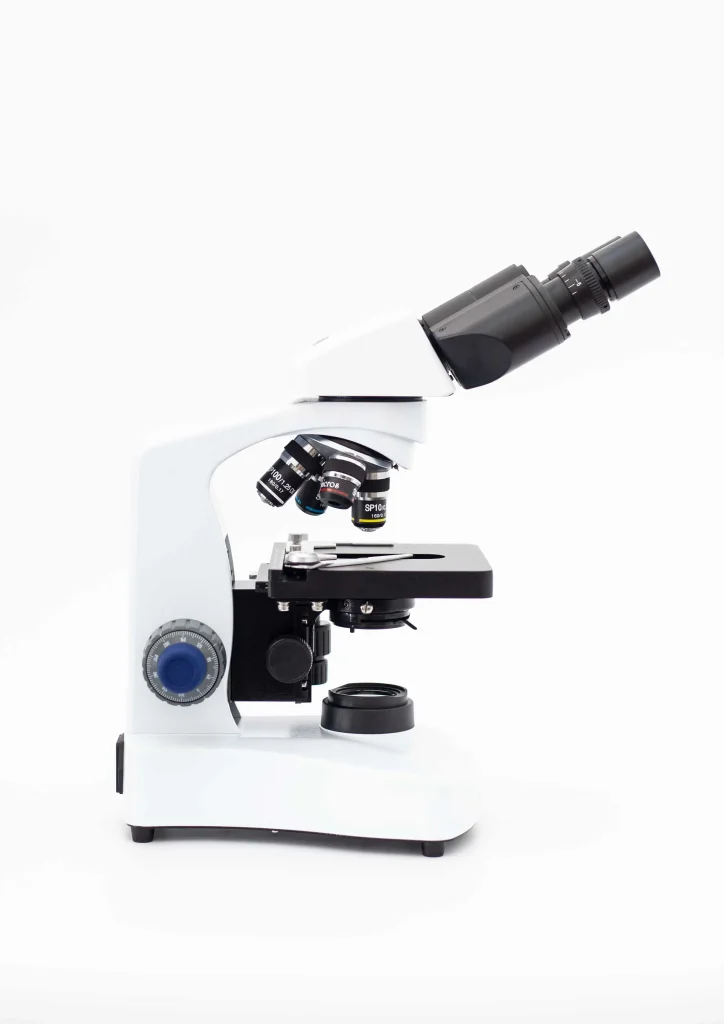

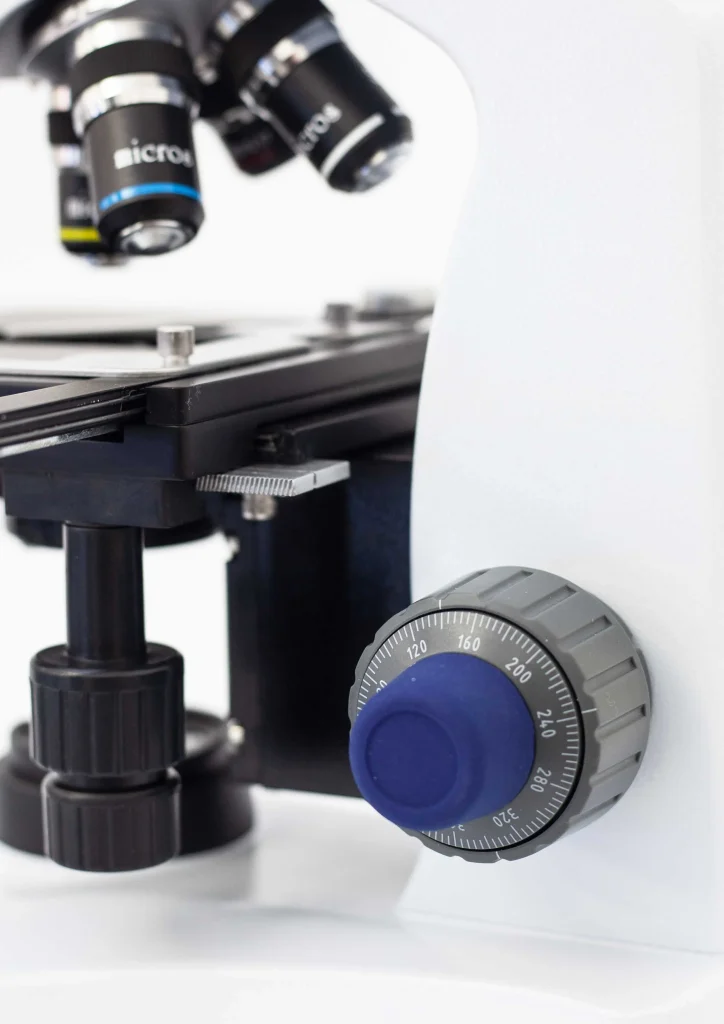

Binocular/Trinocular LED Microscope

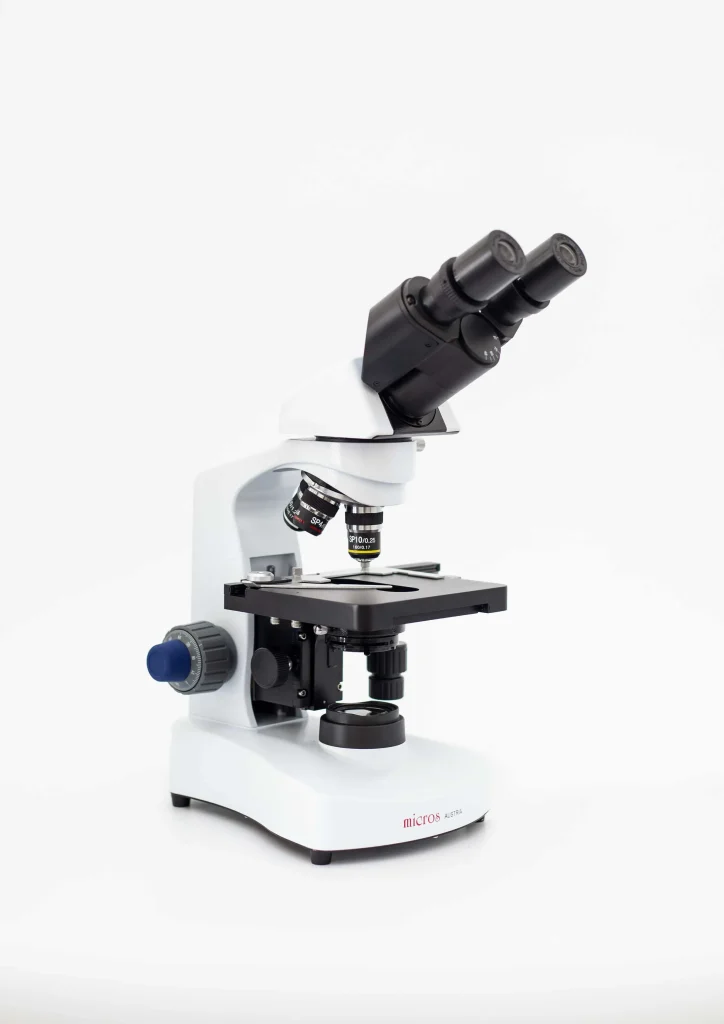

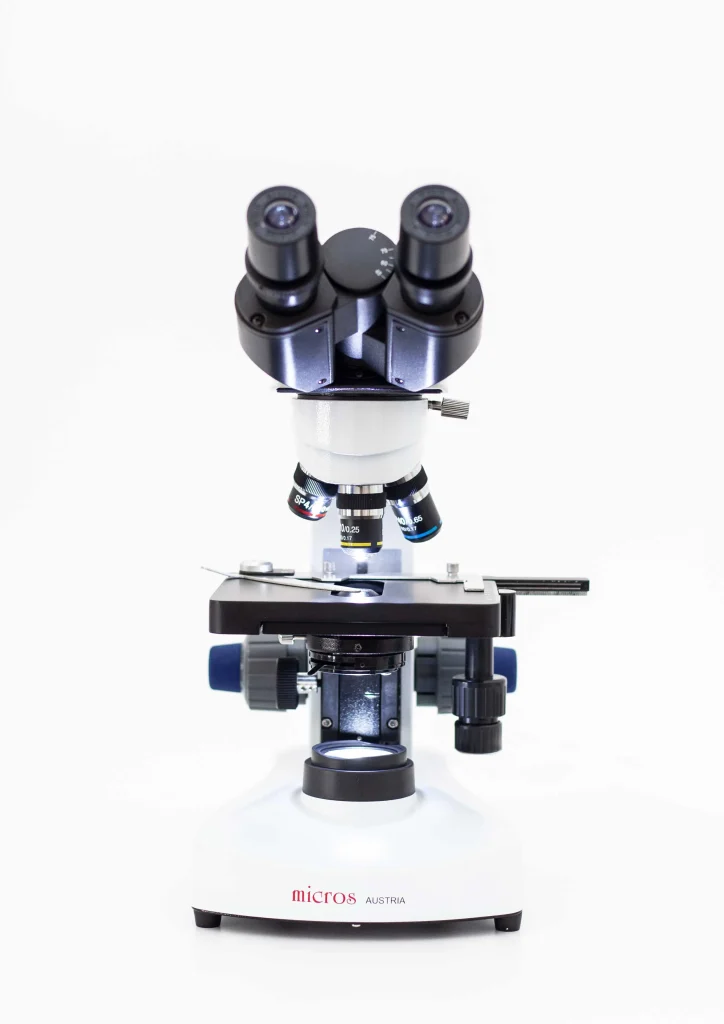

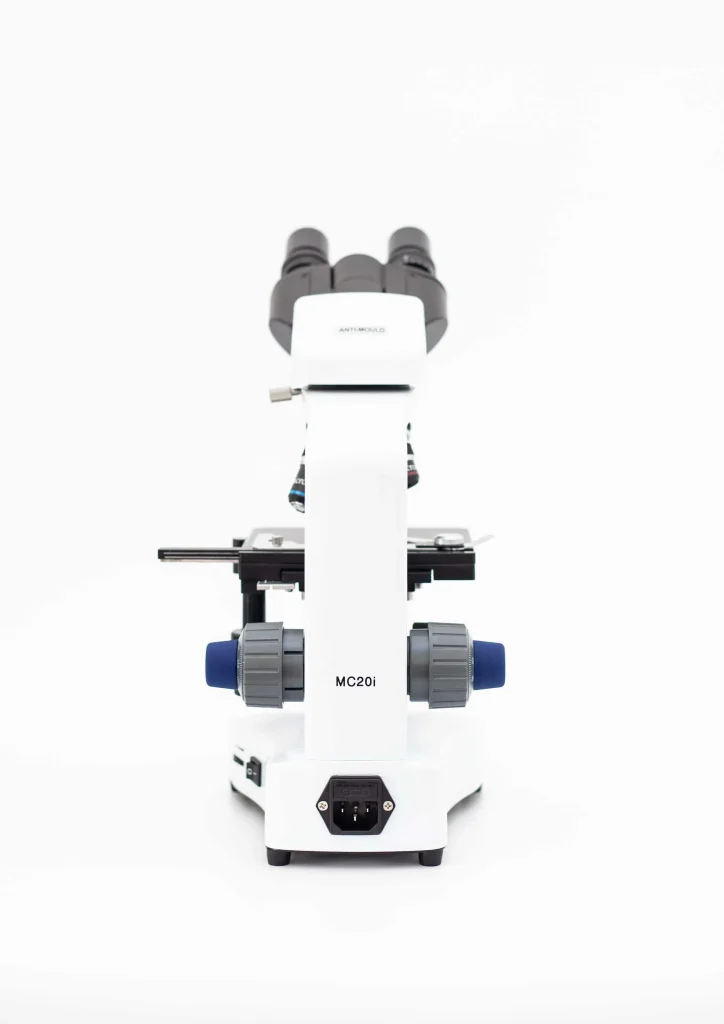

Viola MC20i

The first look at an insect through a microscope may truly be described as a unique experience. All at once we are immersed in a new world that reveals its colorful and often bizarre secrets to our eyes.
Secrets that can only be revealed by using a good, solid microscope.

Scope:

  • In the classroom and in routine laboratory work
  • Bright field applications
  • Microscopy with daylight mirror, also for
    outdoor use
    e.g.: Cytology, hematology, in the veterinary field, for the observation of cells, bacteria.
request now

VIOLA

FEATURES

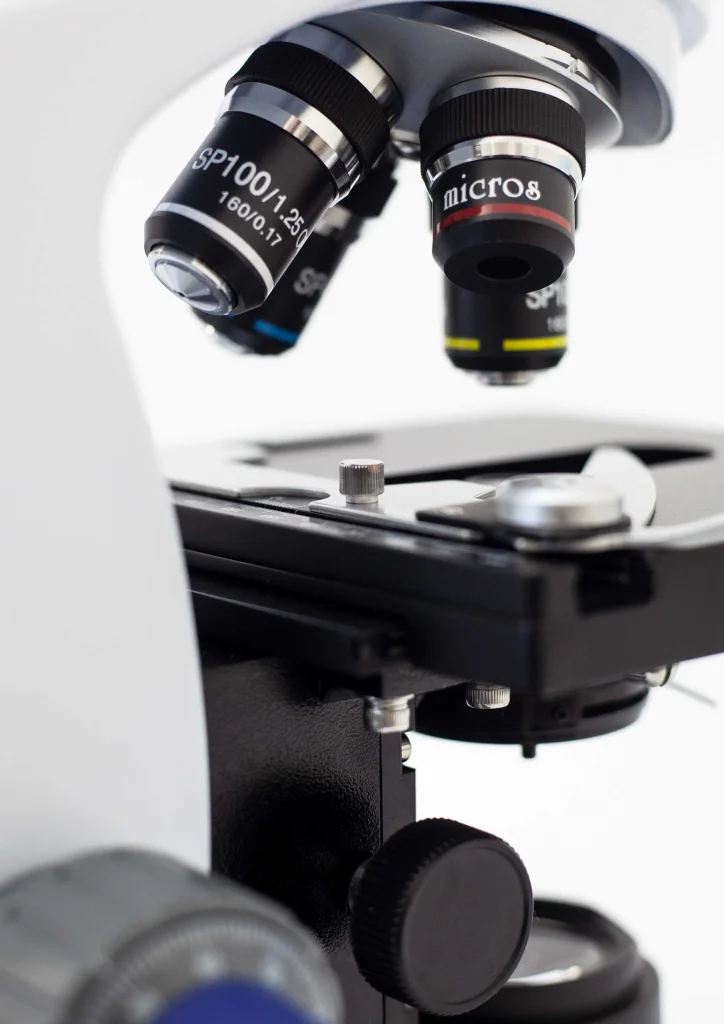

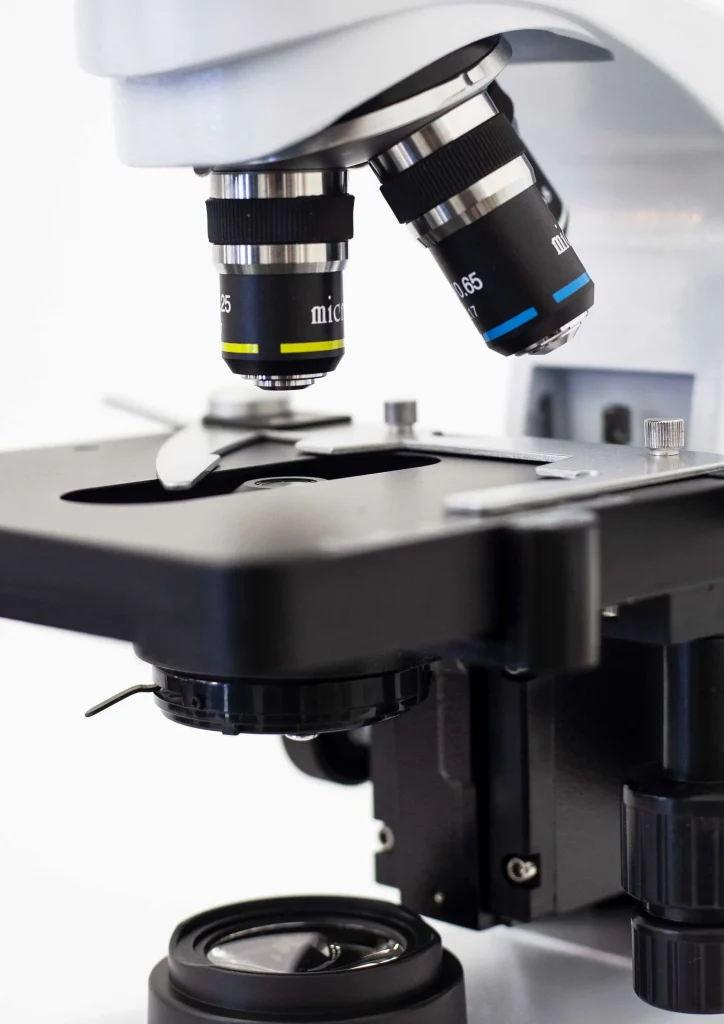

Semi Plan Lenses 4/10/40/100

LED lighting

Bi- or trinocular version

Mechanical cross table

request now

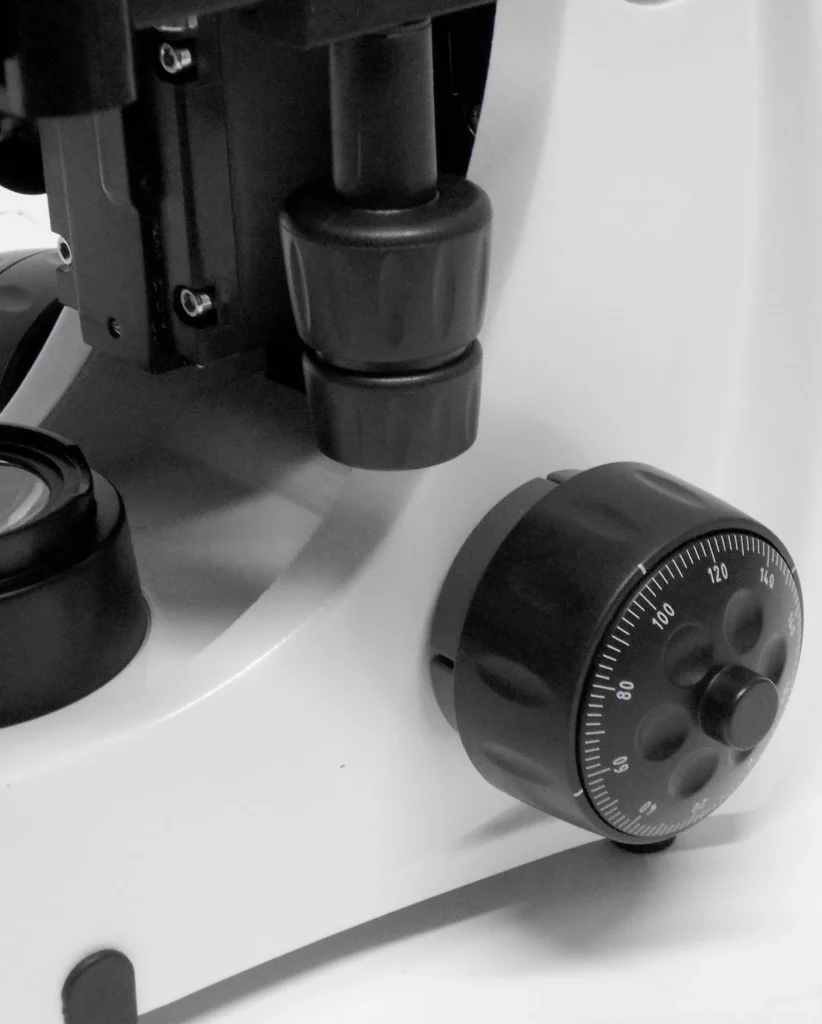

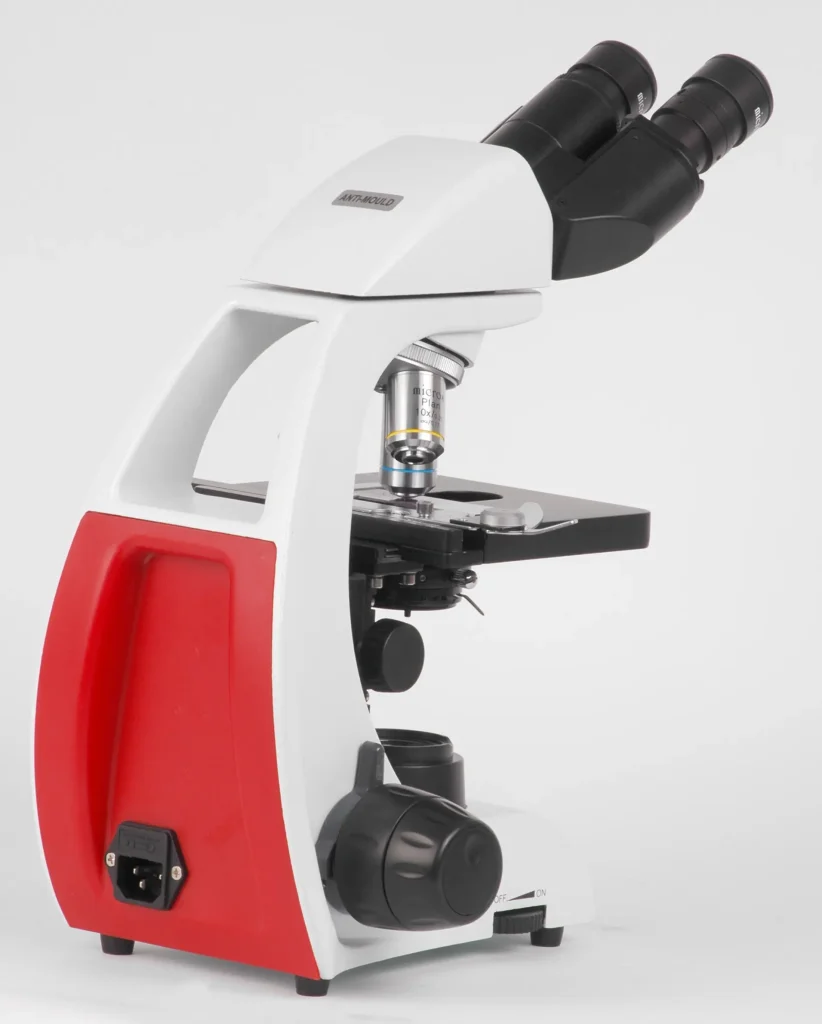

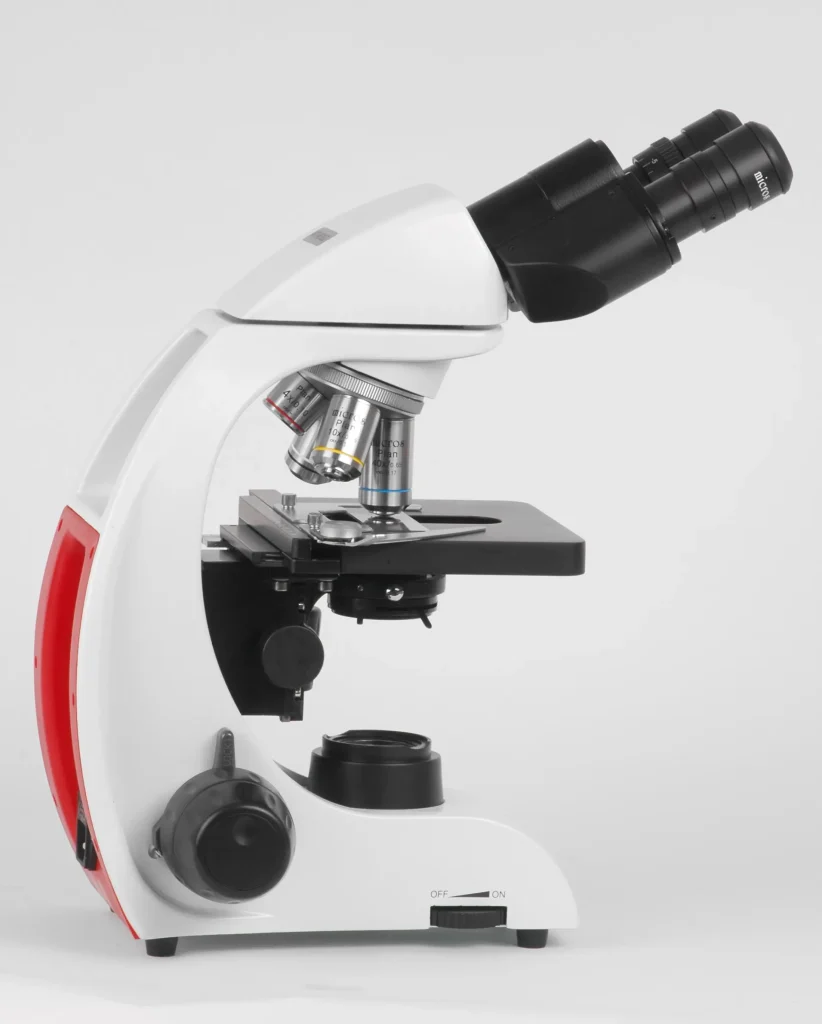

Binocular/Trinocular LED Microscope

Petunia MCX50

Equipped with premium features, this model sets a new standard in clinical microscopes for routine applications. The “PURE” ICO² Plan lens guarantees clear, high-contrast images. The ergonomic and compact design allows fatigue-free work. With its low energy consumption and high brightness through LED, as well as the automatic light switch-off, the system is forward-looking in the field of high quality LED lighting.
PETUNIA MCX50 is used in clinical laboratories, veterinary field, biology and is an excellent choice for schools and universities.

request now

PETUNIA

FEATURES

Infinity optic (Infinity plan optic) 4/10/40/100

Advanced LED

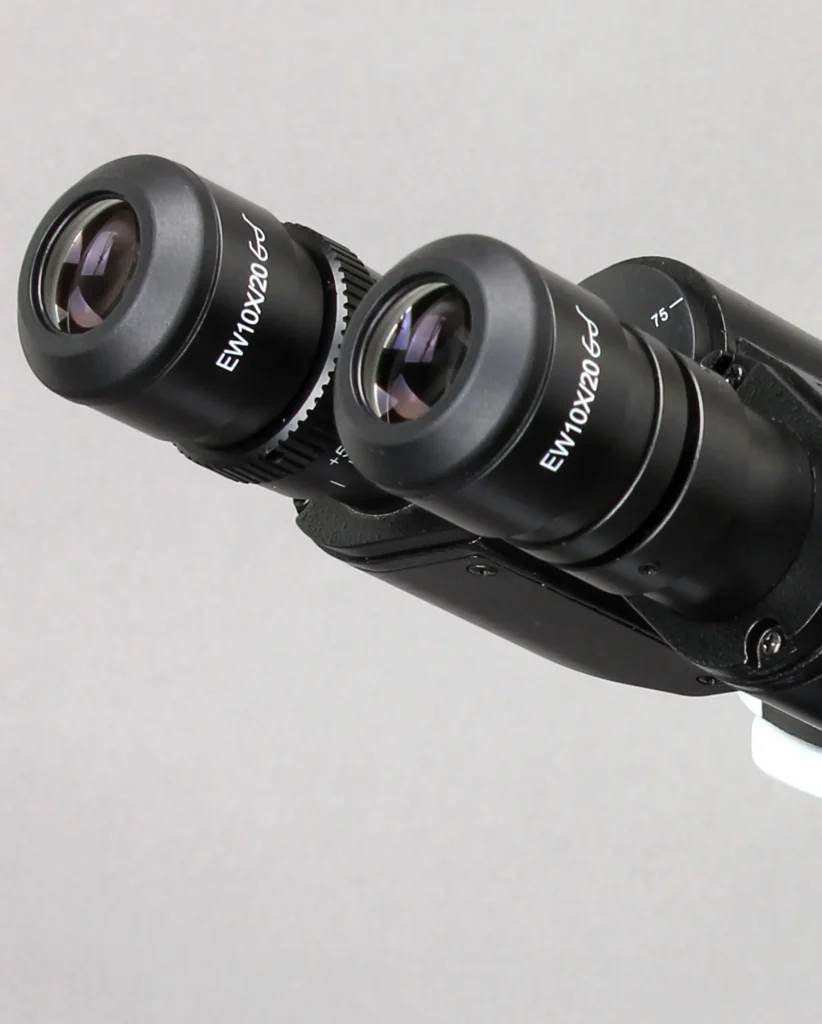

Ergonomic ARCTYPE binocular tube

Smart Sensor Illumination/Power Saving Mode

Multisystem capacitor

Mechanical two-plate cross table

request now

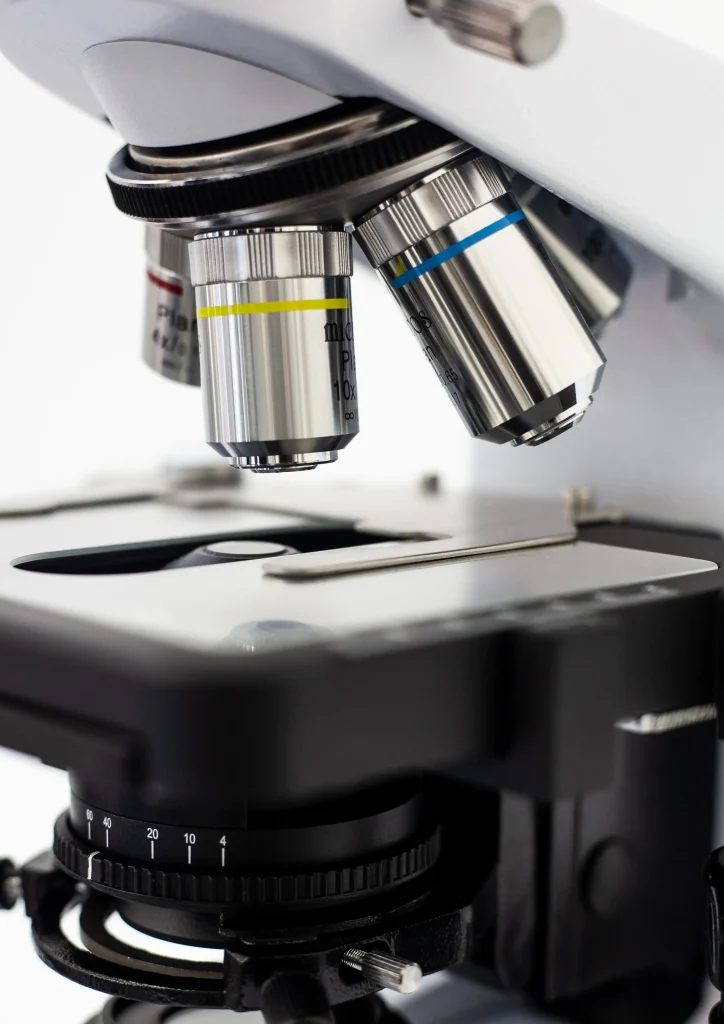

Binocular/Trinocular LED Microscope

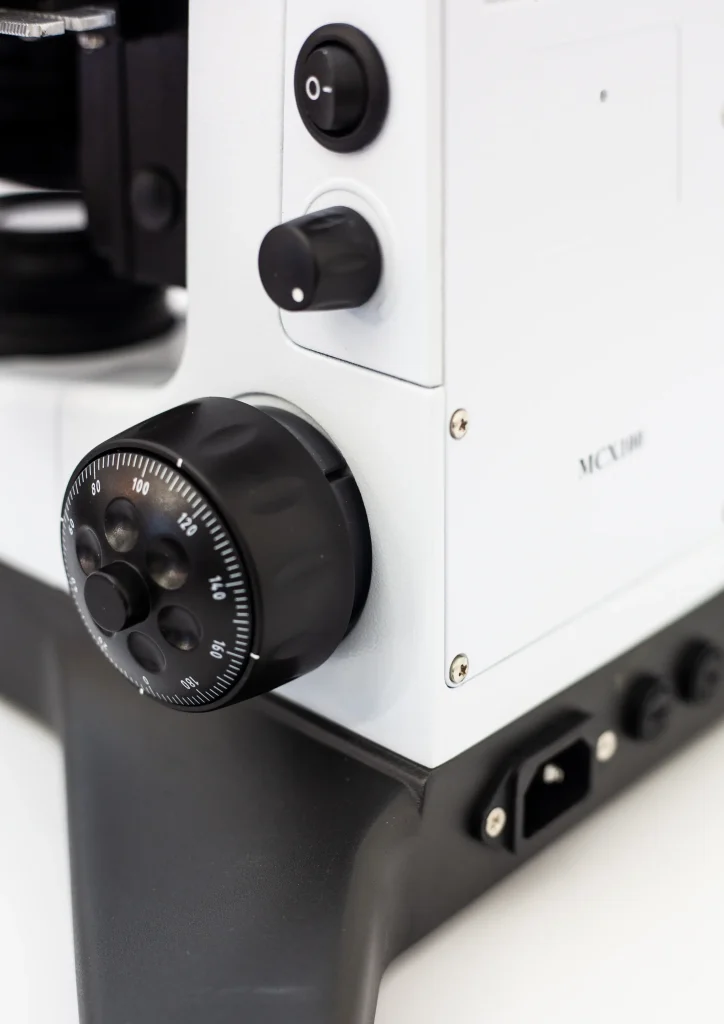

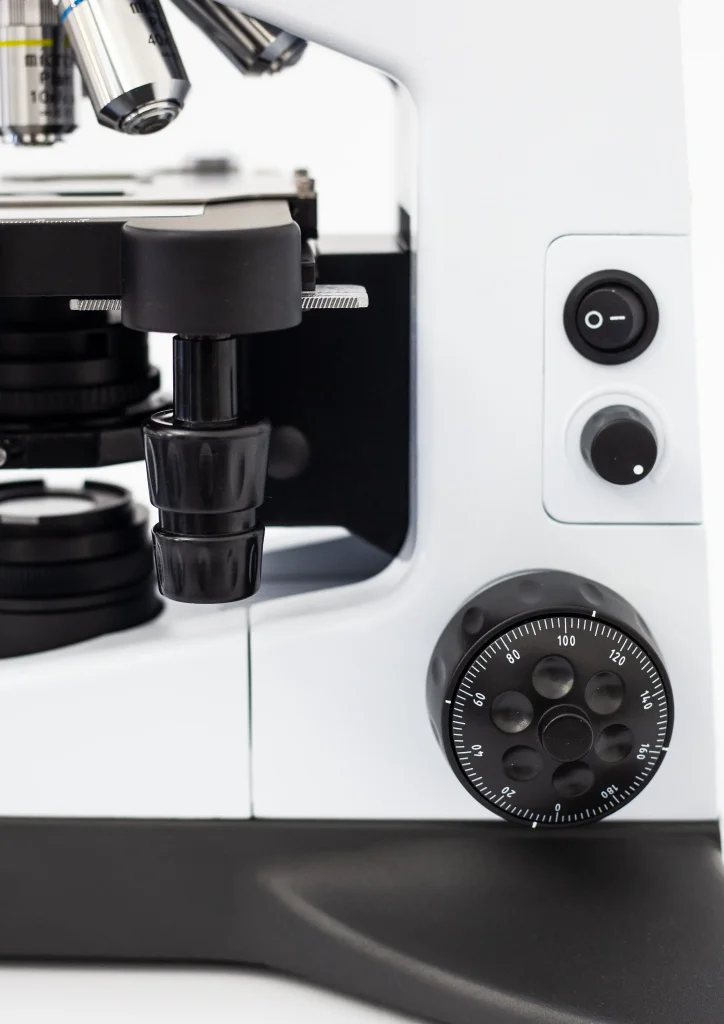

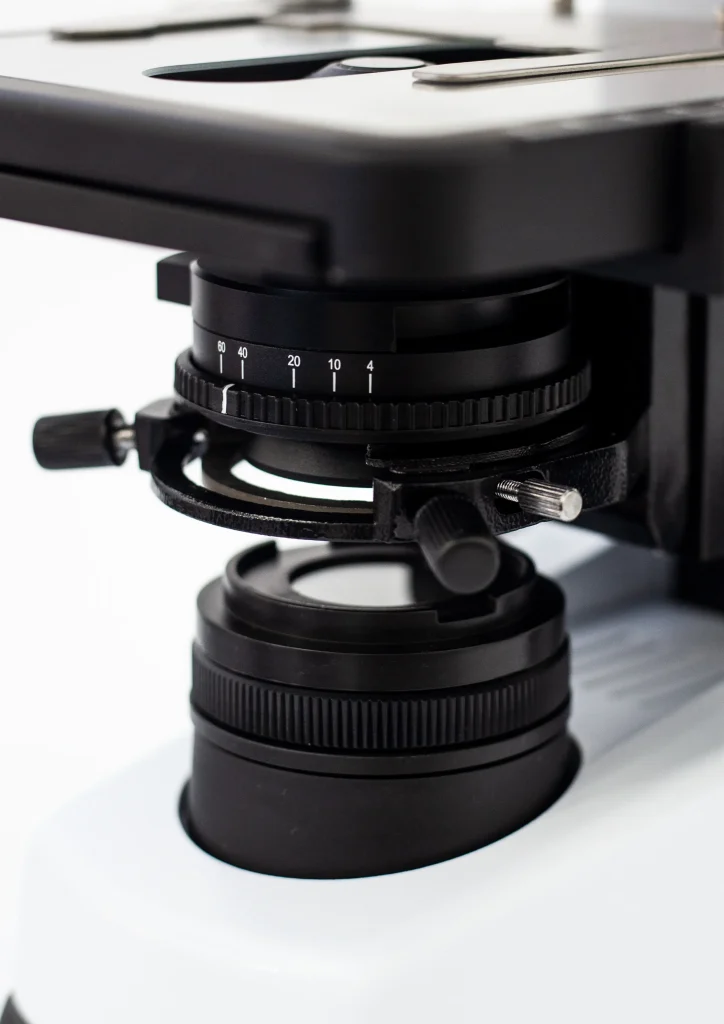

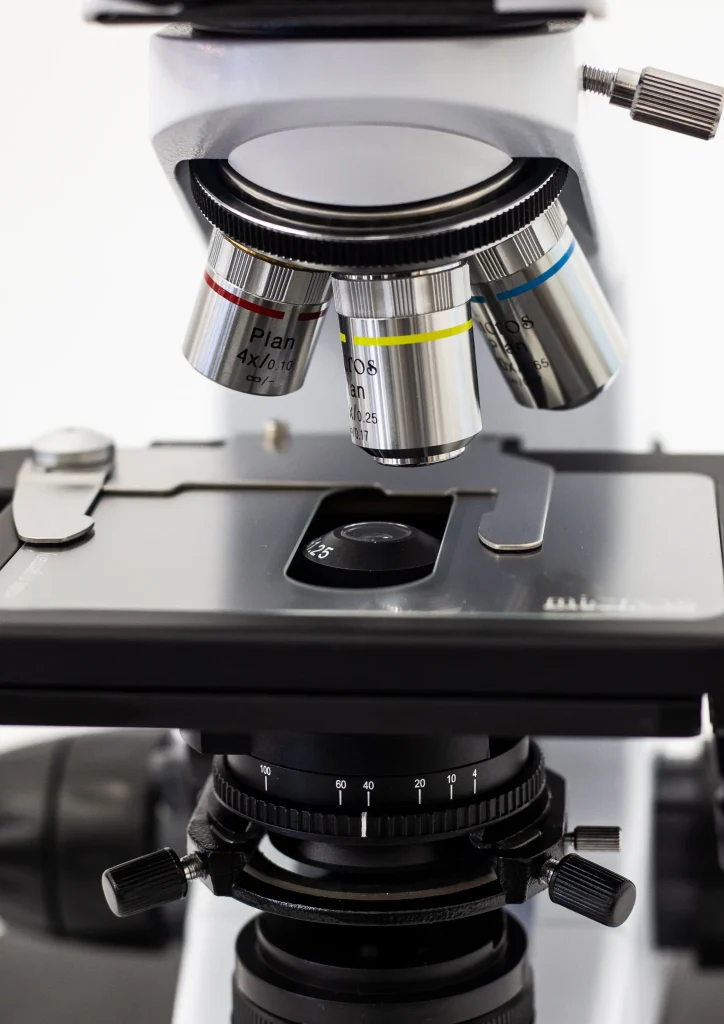

Daffodil MCX100

A highly sophisticated, versatile science microscope for a wide range of
Possible uses , such as highly demanding tasks in the laboratory in the field of gynecology, dermatology, histology and pathology. Brilliant system with infinity optics. With the Energy saving LEDs you achieve high-contrast, crystal-clear results.

Opportunities for expansion:

  • Trino tube
  • LED or HBO fluorescence
  • Phase contrast
  • Immersion dark field
  • Polarization set
request now

DAFFODIL

FEATURES

Infinity optic (Infinity plan optic)

Ergonomic ARCTYPE binocular tube

LED lighting system

Quintuple objective nosepiece

Rack and pinion mechanical table

Koehler lighting

request now

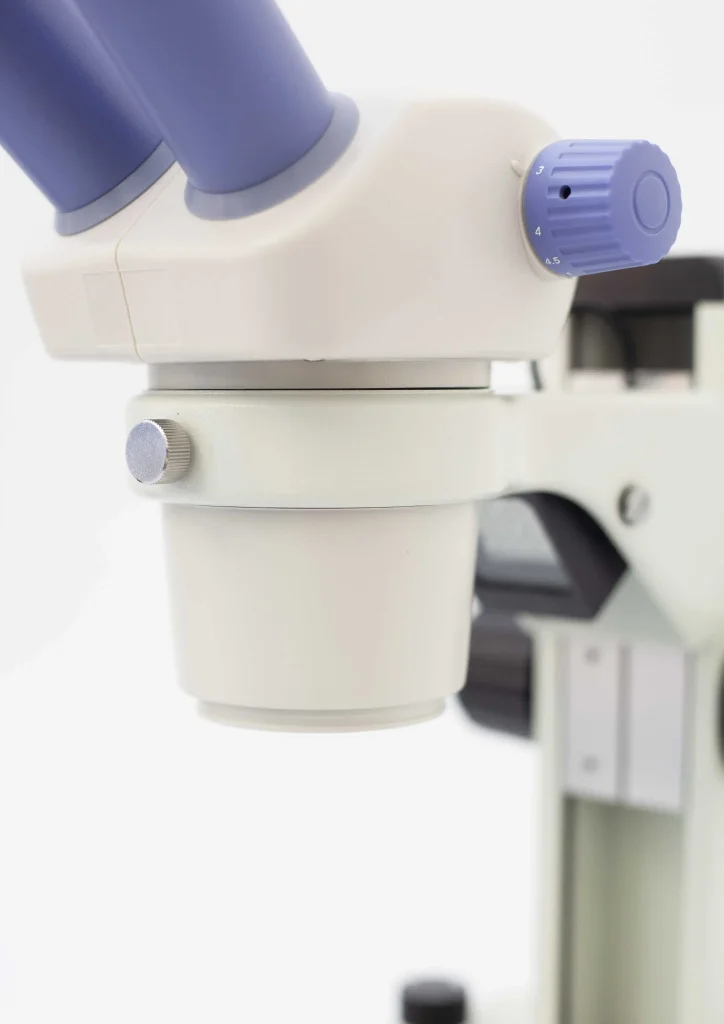

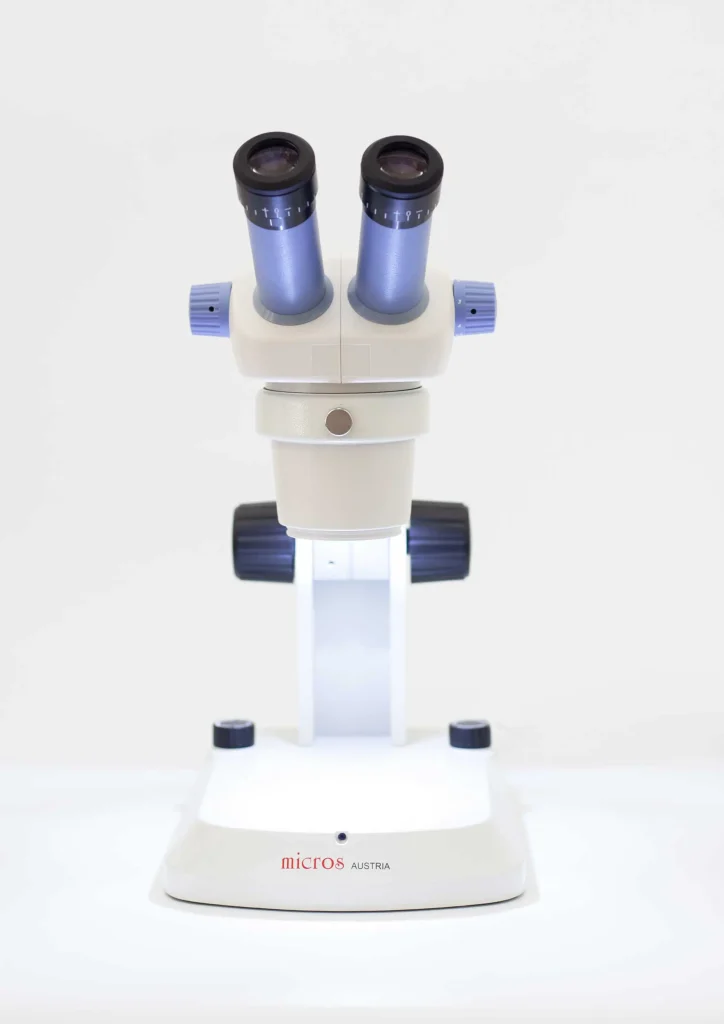

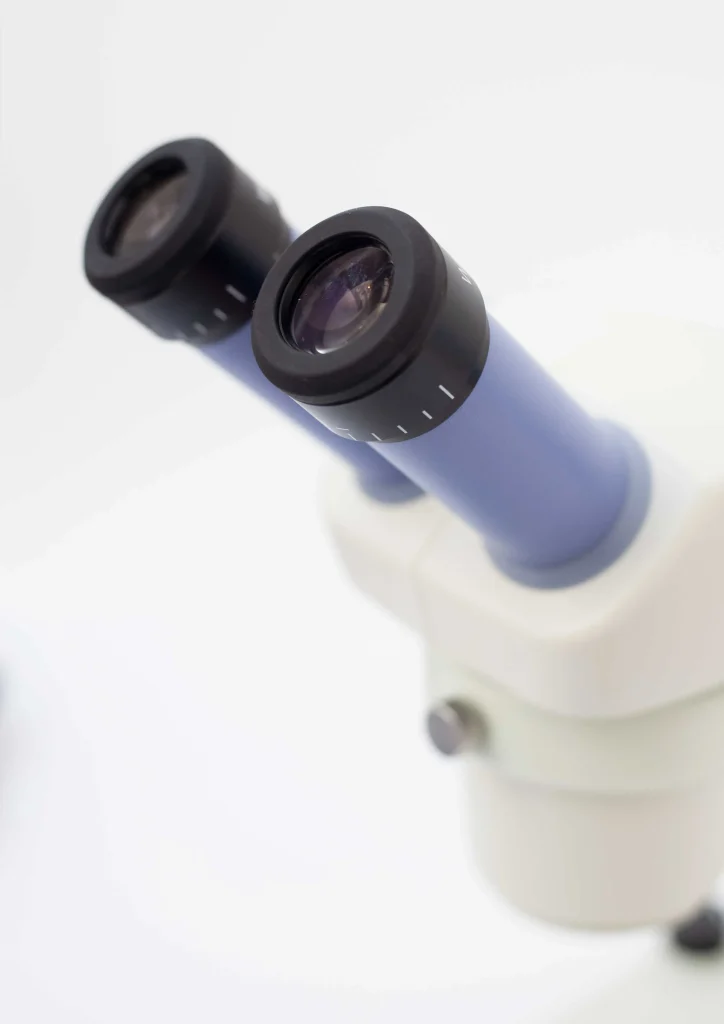

Micro Zoom 1240

Ladybird

Stereo microscopes are perfect for getting started in the world of microscopy.
If only for the reason that the preparations do not require any pretreatment. Whether insects, flowers,
Leaves or small everyday objects such as coins etc. reveal unexpected details under the microscope.
Our stereo microscopes create crystal clear, deep 3D images and leave the user amazed at the many viewing possibilities.

Trinocular zoom tube 45° inclined, 360° rotatable, interpupillary distance 52 – 75 mm adjustable

request now

LADYBIRD

FEATURES

Standard total magnification from 10x – 45x

Eyepieces WF 10x/20, diopter compensation

Standard working distance 97 mm

Stand with incident light – transmitted light illumination
Brightness adjustable, mixed light function

Width x depth x height, 185 x 262 x 315 mm

request now

Stretching table

Gobi

This device is not available in the European region.

The GOBI Stretching Table is ideal for stretching and pre-drying kerosene sections in the histology and pathology laboratory.

The large stepped heating surface provides space for 56 slides and allows convenient placement of the specimens.

An easy-to-use color touch screen provides a clear overview of functions such as temperature control and timer.

In detail, the fast heating up to the desired temperature, the overheating protection, the energy-saving temperature stability, memory and alarm function, as well as the high technical safety due to a double protection system make the GOBI a reliable partner in your laboratory.

request now

GOBI

FEATURES

Total dimensions (L/W/H): 327 x 340 x 166 mm

Temperature range: up to +99 °C, accurate to 1°C

Connected load: 220V/50Hz

request now

Illuminated water bath

Wave

This device is not available in the European region.

The WAVE water bath is ideal for stretching and mounting kerosene sections in the histology and pathology laboratory.

The large highly heat-stable glass tray with LED bottom illumination allows safe mounting and the side worktop convenient placement of the preparations or instruments.

An easy-to-use color touch screen provides a clear overview of functions such as temperature control and timer.

In detail, the fast heating up to the desired temperature, the overheating protection, the energy-saving temperature stability, memory and alarm function, as well as the high technical safety through a double protection system make the WAVE a reliable partner in your laboratory.

request now

WAVE

FEATURES

Total dimensions (L/W/H): 327 x 340 x 166 mm

Dimensions glass bowl (L/W/H): 210 x 168 x 55 mm

Temperature range: up to +99 °C, accurate to 1°C

Connected load: 220V/50Hz

request now
